Fifth wheel J-3800 for Semi Trailer parts Truck Hitch

Fifth wheel J-3800-ultra-large tonnage loading capacity, four-way swinging, and suitability for various complex road conditions

CONTACT NOW down load to pdf

Details

Tags

ProductsDetail

Use： Trailer Parts

Place of Origin： China

Material: Carbon Steel

Application : Connecting

Height（mm）: 290MM

D-Value（KN): 260KN

Impose load（kg): 60T

Weight(kg)： 150KG

Portrait Tilt Angle：15°

Lateral Tilt Angle ： 7°

King Pin Size：90mm

Color：Black

The Fifth Wheel J-3800 is a high quality trailer component with exceptional features and performance for hauling high tonnage in challenging road conditions. It is made of high-quality cast steel material to ensure its durability and ability to withstand heavy loads. This sturdy construction guarantees the stability and reliability of the J-3800 fifth wheel during transport.

One of the distinctive features of the J-3800 fifth wheel is its four-way oscillating capability. This unique design allows the fifth wheel to swing freely in any direction, making it suitable for driving on rough mountain roads, jungle areas and mining areas. The ability to adapt to complex road conditions ensures that the trailer remains stable and safe during transportation. In addition, the four-way swing design reduces resistance when driving, improves overall efficiency and reduces fuel consumption.

semi truck 5th wheel

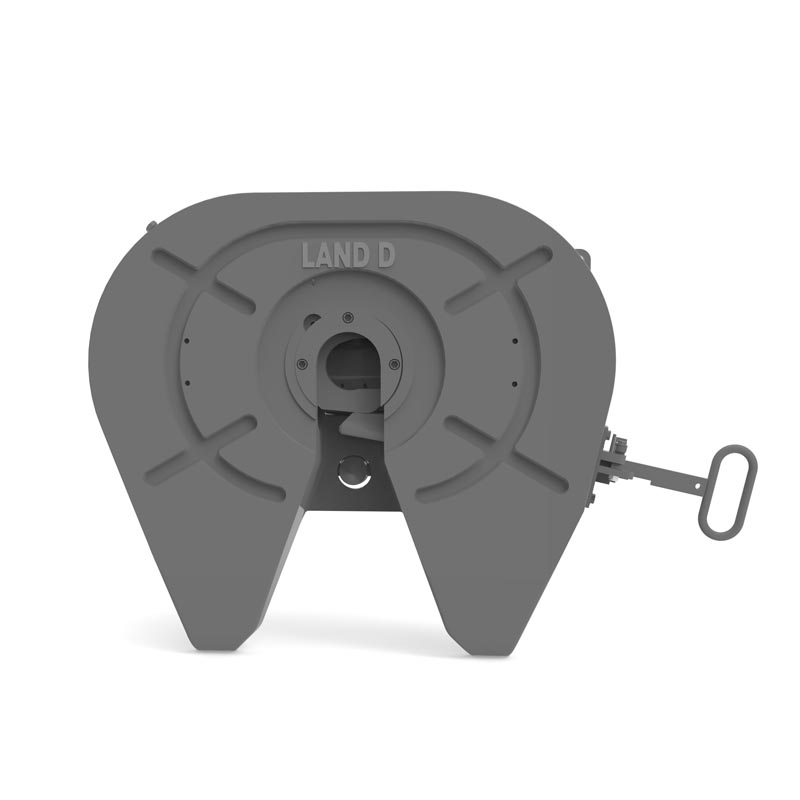

Fifth wheel J-3800 for Semi Trailer parts Truck Trailer Hitch

Additionally, the J-3800 fifth wheel has a bi-directional oscillating function for extra versatility on the highway. When necessary, the driver can switch the fifth wheel to a two-way swing mode, ensuring optimum safety and stability during high-speed cargo transportation. This feature allows a smooth and controlled movement, preventing any potential hazards that may arise when driving at high speeds. The ability of the J-3800 fifth wheel to adapt to various road conditions makes it a reliable choice for a variety of transportation applications.

In addition to performance, the J-3800 fifth wheel also boasts a long service life, allowing it to withstand harsh environmental conditions and long-term use. Its solid construction and high-quality materials ensure its durability and resilience. Additionally, the component is relatively easy to maintain and replace, reducing maintenance costs and minimizing downtime. The longevity and ease of maintenance of the J-3800 fifth wheel contributes to its overall cost-effectiveness and reliability.

To sum up, the fifth wheel J-3800 is a reliable, safe and efficient choice for those who need to transport large-tonnage cargo under harsh road conditions. Its high-quality cast steel structure and four-way swing function ensure stability, safety and reduce drag during transportation. The ability to switch to two-way swing mode ensures optimum performance on the highway. In addition, its long service life and ease of maintenance make it a cost-effective solution. The J-3800 fifth wheel is ideal if you need a fifth wheel that provides stability and safety in any road condition.Our products enjoy a lifetime warranty, including outriggers and disks. The parts Lock jaw, wearing ring and Locking bar contained in the fifth wheel are compatible with JOST JSK 38G.
